| Compare economy | General light | LED light |
|---|---|---|
| 51% Savings |
.JPG) |
.JPG) |
| Power Consumption (W) |
40 | 19.8 |
| Power consumption (kW/年) |
730 | 361 |
| Amount of power (kW/won) |
72,270 | 35,739 |
※ standard : 10 hours a day. 365 days. Installation 5
※ Power Unit : 99 won general/1kWh
· 51% energy savings compared to conventional lighting and power costs
· UV rays are not harmful to the body and not blinking prevent eyestrain and blurred vision
· LED device according to the power supply (Long Life) Design and application of a semi-permanent part
· High efficiency, high power factor in product design
· LED converter equipped with a dedicated (separate ballast is not required)
· Supports a rich intensity, long life guarantee, domestic enterprises LED CHIP (Samsung, LG) applies
|

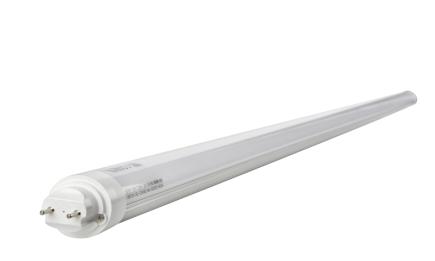

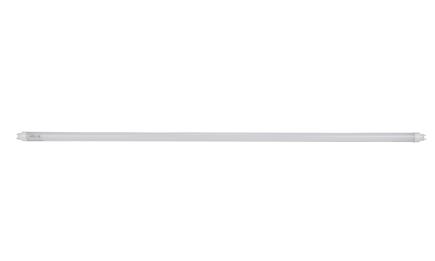

Model |
T10-1200-IV(Direct Drive) |
T10-1200-3I(Compatible) |
|
Size (mm) |
1,198 * 30 | |
|
Weight (g) |
455 | |
|
input voltage (V) |
100 / 240 (50Hz / 60Hz) | |
|
Power Consumption (W) |
13.8 / 16.3 / 19.8 | |
|
Total Intensity (lm) |
2,200 | |
|
Optical Efficiency (lm/w) |
160 / 135 / 115 | |
|
Color Temperature (K) |
3,000 ~ 6,500 | |
|
Life (H) |
50,000 | |
|
Socket Specs |
G13 | |
|
Power Factor (PF) |
0.95 | |
